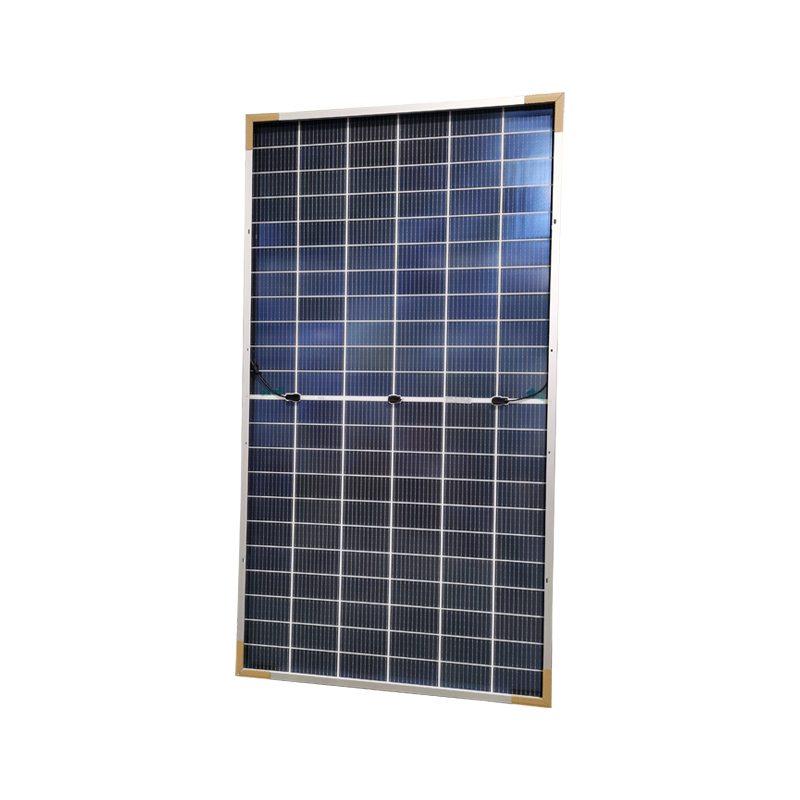

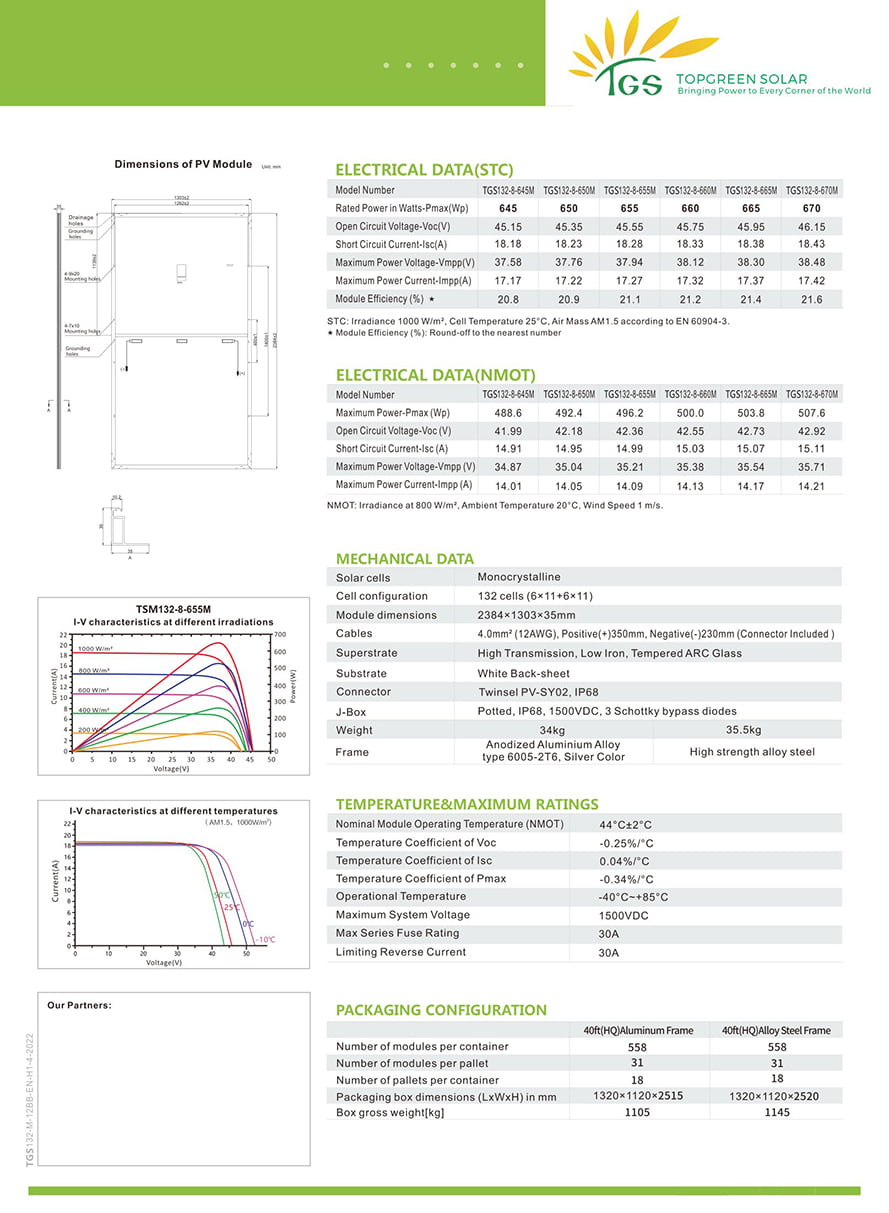

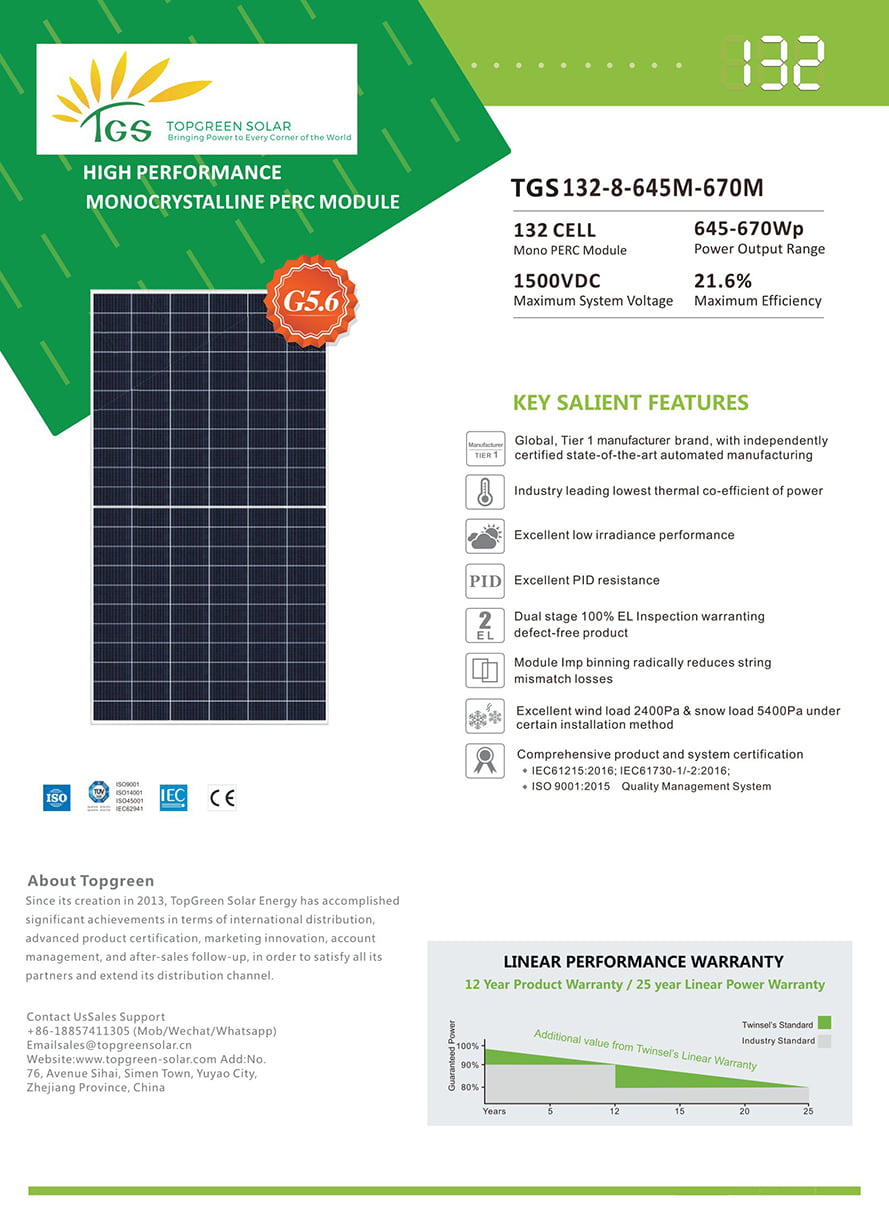

TGS-132-8-645M-670M
  • TGS-132-8-645M-670M
  • TGS-132-8-645M-670M

    • TGS-132-8-645M-670M

    Solar cells

    Monocrystalline

    Cell configuration

    132 cells (6x11+6x11)

    Module dimensions

    2384x1303x35mm

    Cables

    4.0mm2 (12AWG), Positive(+)350mm, Negative(-)230mm (Connector Included )

    Superstrate

    High Transmission, Low Iron, Tempered ARC Glass

    Substrate

    White Back-sheet

    Connector

    Twinsel PV-SY02, IP68

    J-Box

    Potted, IP68, 1500VDC, 3 Schottky bypass diodes

    Weight

    34kg

    35.5kg

    Frame

    Anodized Aluminium Alloy type 6005-2T6, Silver Color

    High strength alloy steel
