TGS-530-550-M144

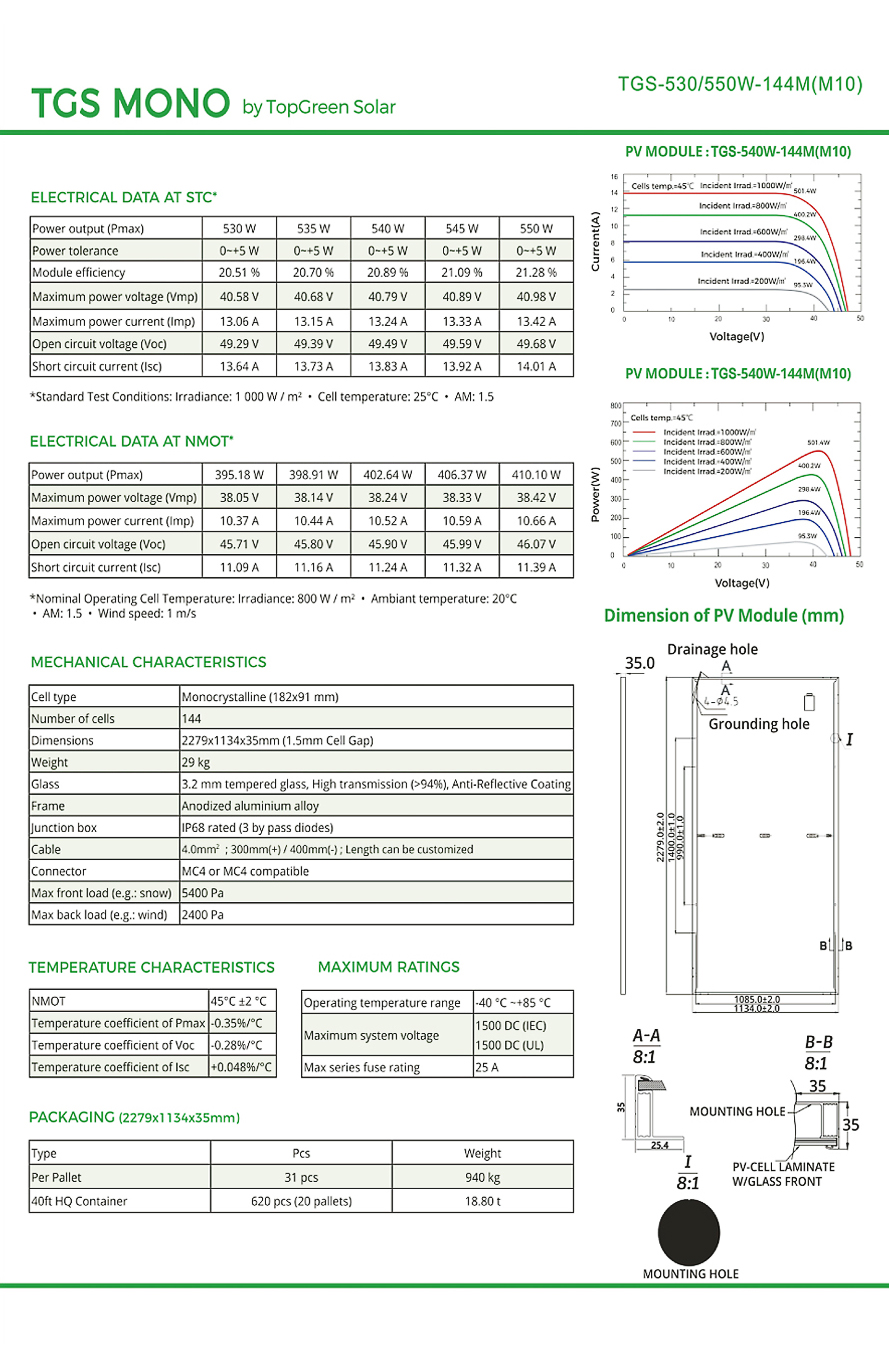

TGS-530-550-M144

Cell type Monocrystalline(182*91mm)
Number of cells 144
Dimensions 2279*1134*35mm(1.5mm cell gap)
Weight 29kg
Glass 3.2mm tempered glass,high transmission(>94%),anti-reflective coating.
Frame Anodized aluminium alloy
Junction box IP68 rated(3 by pass diodes)
Cable 4.0mm²,900mm (+) 900mm (-) ; length can be customized.
Connector MC4 or MC4 compatible
Max front load(e.g.:snow) 5400 Pa
Max back load(e.g.:wind) 2400 Pa
