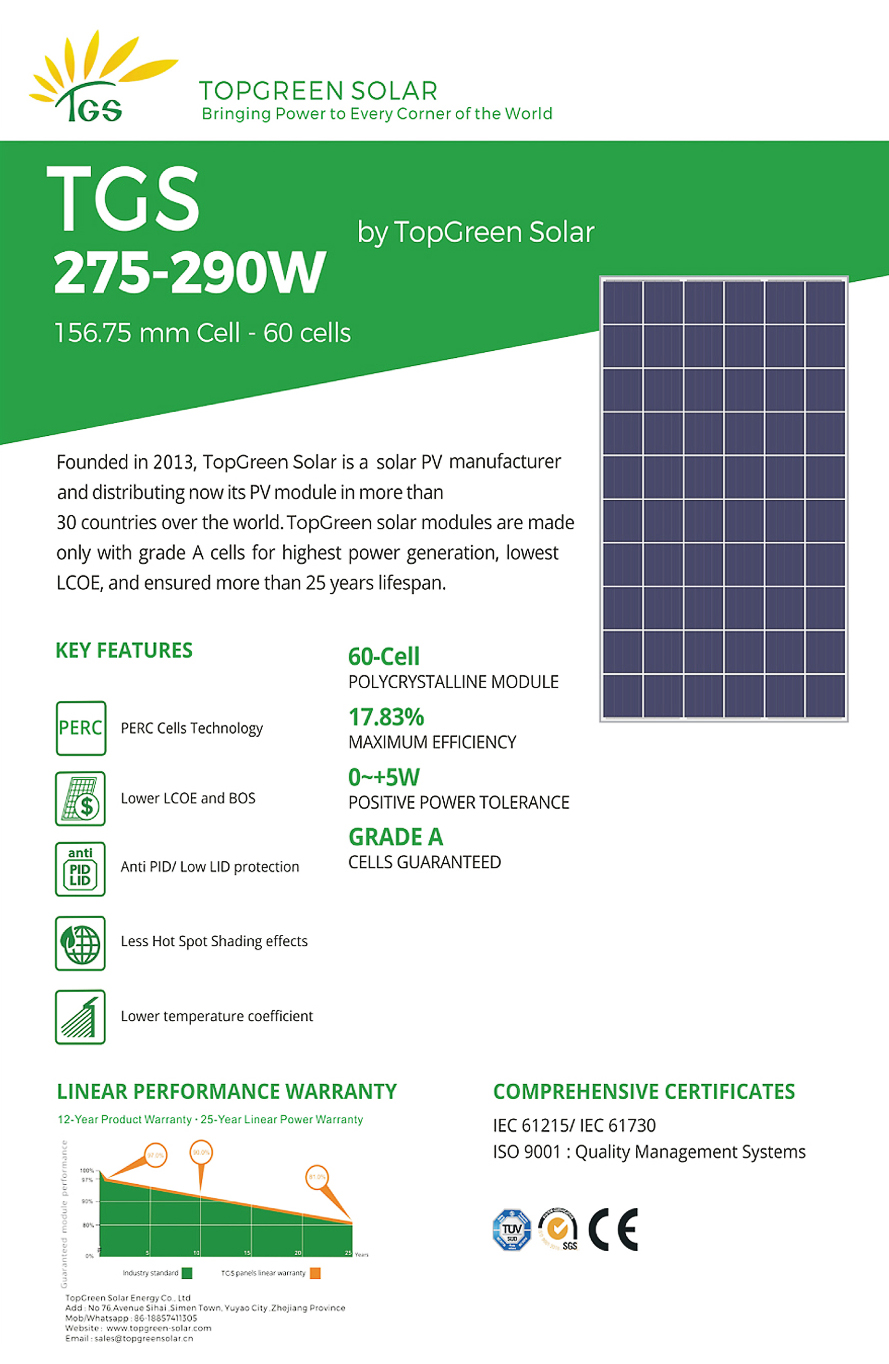

TGS-275-290-P60

TGS-275-290-P60

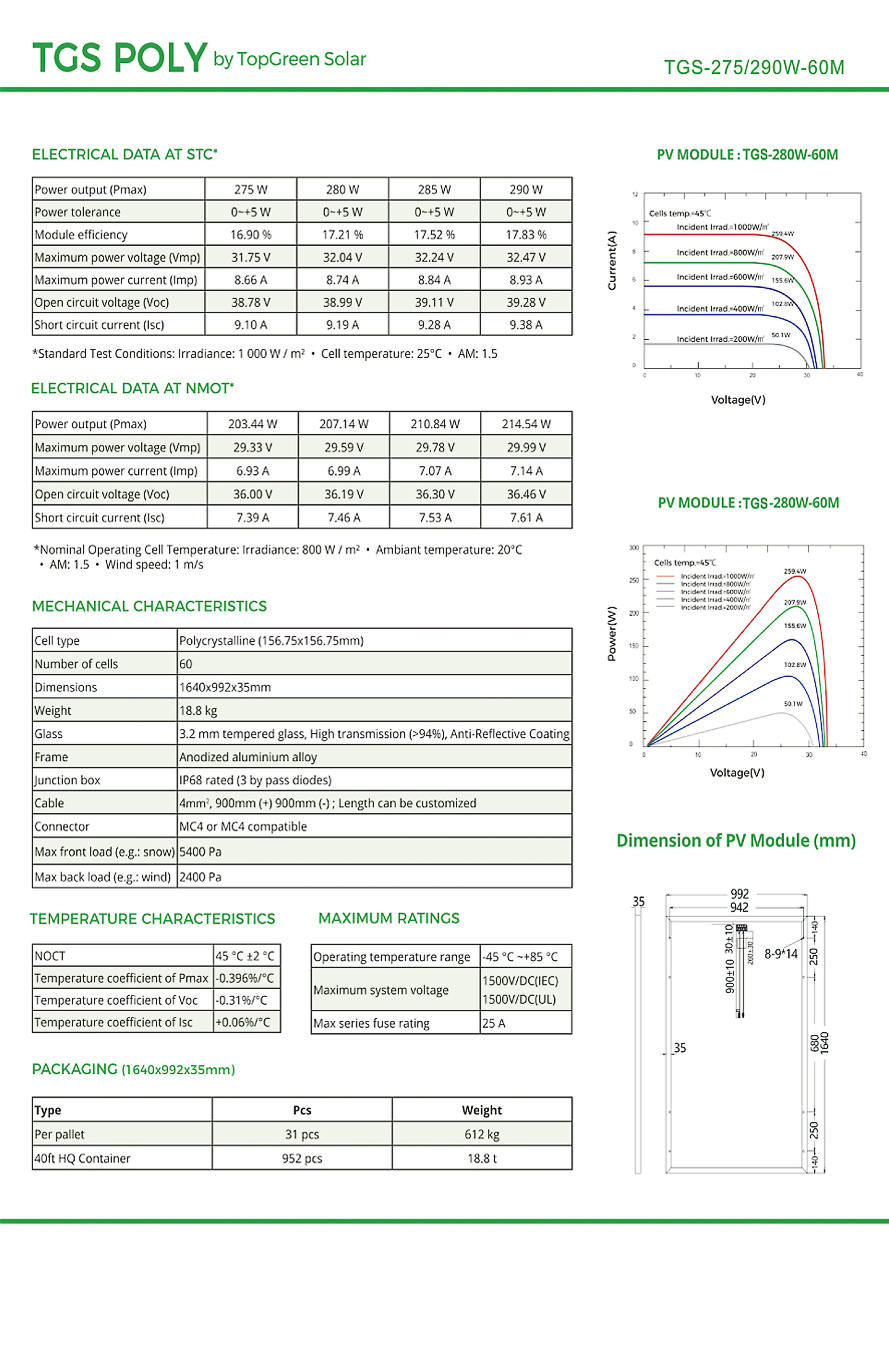

Cell type Polycrystalline(156.75*156.75mm)
Number of cells 60
Dimensions 1640*992*35mm
Weight 18.8kg
Glass 3.2mm tempered glass,high transmission(>94%),anti-reflective coating
Frame Anodized aluminium alloy
Junction box IP68 rated(3 by pass diodes)
Cable 4mm²,900mm (+) 900mm (-) ; length can be customized
Connector MC4 or MC4 compatible
Max front load(e.g.:snow) 5400 Pa
Max back load(e.g.:wind) 2400 Pa
